SumSeries


Description	Returns the sum of the input time-series at each time sample.
Input	Time Series – multiple (Single or multiple time series)
Parameters	None
Output	Transformed Time Series: Single
Available in	Alerts, Composites, Dashboards

The SumSeries function is one of the most commonly used in Anodot. It provides the most straightforward way to sum a group of time-series, resulting in a single time-series. This is useful to monitor the summed behavior of multiple metrics.

Usage Example

The following metrics track the average traffic volume in different road segments:

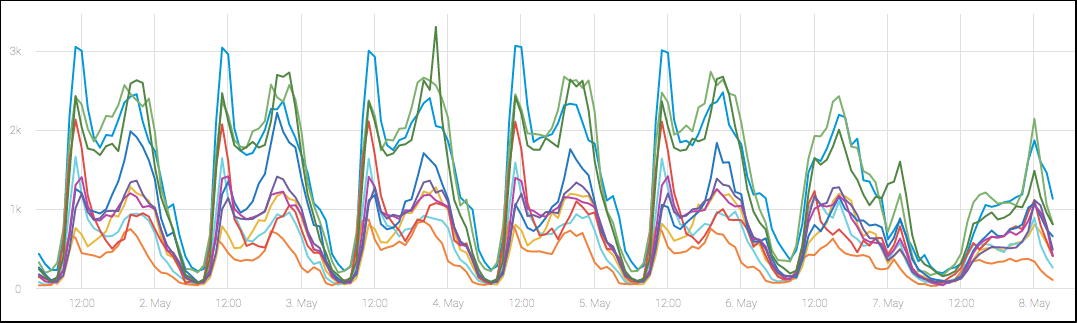

Note that the graph displays only 10 out of 99 total metrics:

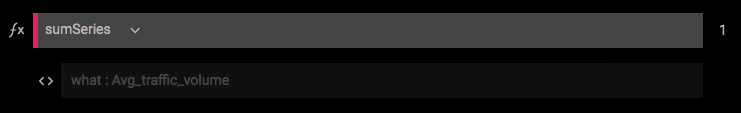

After applying the SumSeries function, the result is a single time-series:

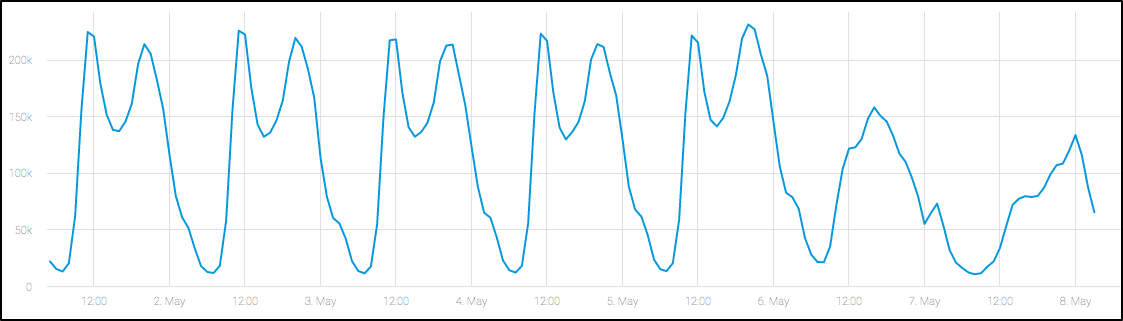

And the graph displays the sum of all time samples across all 99 metrics:

ℹ️

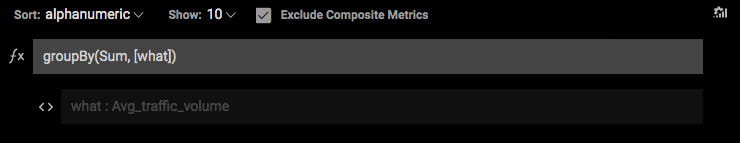

An identical result can be achieved using the GroupBy function, with Sum aggregation over the measurement ("What"):
