Amazon Kinesis

Collect your Amazon Kinesis data in three simple steps:

1. Provide Anodot read permissions to the Kinesis stream - see Enabling Reading from the Kinesis Stream .
2. Create an Anodot Data Source.
3. Create Kinesis Data Streams to slice the data according to your use cases.

Creating an Amazon Kinesis data source

1. In the Navigation Panel, go to Integrations > Catalog.

2. Use the Search box OR click the Data Stream filter to locate the data source.

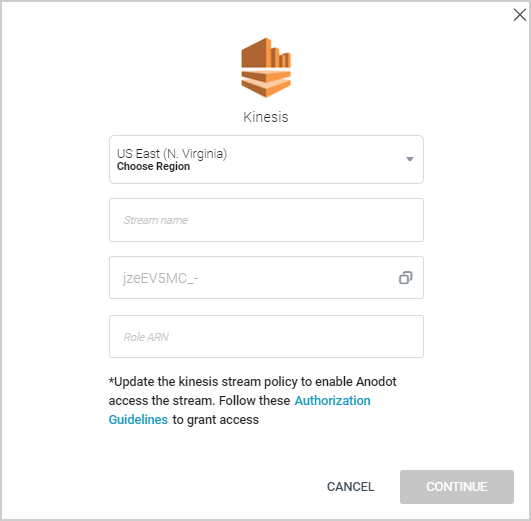

3. Hover over the Amazon Kinesis tile, and click Start. The Amazon Kinesis dialog is displayed, as shown below.
   Note: If the data source has already been used, a dialog is displayed in which you can select from one of the listed sources. Alternatively, create a new source by clicking Add a new source.



4. From the dropdown menu select the Kinesis stream region.

5. Enter the Stream name you created in your Kinesis account.

6. Enter the Role ARN.

7. Click CONTINUE and define the Stream Query.

Creating an Amazon Kinesis data stream

If you just created a new Amazon Kinesis data source, skip to step 3.

1. In the Sources page (accessed by clicking Integrations > Sources in the Navigation Panel), filter the list of streams to find the Amazon Kinesis source for which you want to create a stream query.
   Note: The streams associated with the chosen source are displayed. If the Streams panel is empty, no stream queries exist for that source.

2. Hover over the Amazon Kinesis data source, and click + New Stream. The Stream Query page is displayed.



3. In the Stream properties section, set the stream name and owner.

4. In the Missing data section, select from one of the following when there is no data:

   • Data gaps should not be filled
   • Fill in the gaps

5. In the Set up section, choose a:

   • Record type - If you use multiple JSON records, choose a record type.
   • Record delimiter - Select the relevant delimiter.

6. Click the Query Schedule edit icon to set the delay [in minutes].
   Note: To minimize the partial results in your reports, set the delay according to the time it takes the data to be available.

7. In the Stream Filters section:
   i. Choose a Path filter. Use a dot (".") to indicate hierarchy in the JSON object.

   Example: To filter the 401 error codeExample

   1. Fill in the path: Error.Error_Details.Error_code
   2. Fill in value: 401


   {
      "Error": {
        "Error_Details": {
          "Error_code": "401",
          "text": "Unauthorized Request",
          "details": "Request is not allowed in current scope"
        }
      }
   }

   ii. Choose an Operator, to Include/ Exclude the values specified in step 3 iii.
   iii. Enter Values to include or exclude in the filter.
   You can also add {DNE} as a specific codeword, which supports the “field does not exist” scenario as one of these values.

8. To add more Path filters, click + Add Another Path Filter and repeat step 5. [Optional]

9. Click Collect.

10. Click the Measures & Dimensions edit icon, and add parameters to the query by dragging them from the Available fields to the relevant section.

11. Select the Use external timestamp checkbox to use the Kinesis stream timestamp.
    Note that if you clear the checkbox, the timestamp field provided within the JSON message is used, including:

    • The path representing the timestamp to use
    • Path(s) representing measure(s)
    • Path(s) representing dimension(s)

12. Click NEXT. The Stream Table is displayed; see Stream Tables for more information.

Filtering Examples

As a user you want to implement the following:

Handling Arrays in the input

The Kinesis stream supports JSON arrays, with several restrictions:

1. The array must include only values

2. The array must be a well structured JSON array (starting with "[", finishing with "]")

3. The array is at the same level of other fields in the JSON

4. Neither Nested arrays nor multiple arrays are supported per JSON file.
