Anodot Agent - SQL to S3

Overview
Prerequisites
Anodot Agent Installation
Anodot Agent Configuration
   Config File
      Setup Parameters
      Source query Template Variables
Anodot Agent Activation & Monitoring
   Activation
   Monitoring

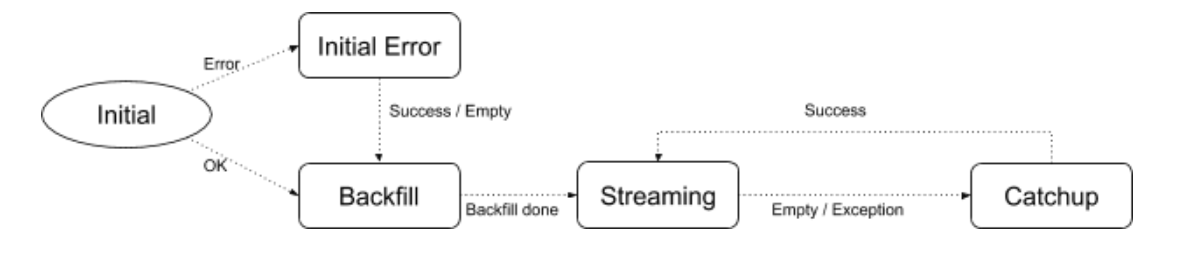

     Anodot Agent Stream States
From the S3 Bucket to Anodot
Appendices
   Appendix 1: Manual Installation Instructions
   Appendix 2: Instance Role Policy

Overview

Use the Anodot SQL to S3 agent to stream SQL records to Anodot with an S3 bucket as an intermediary:

1. Anodot SQL to S3 agent

a. Collects data records from your database.
b. Stores the records as files in an S3 bucket.

2. Anodot S3 Data collector

a. Collects the files and converts them to Anodot time series metrics, containing measures and dimensions.

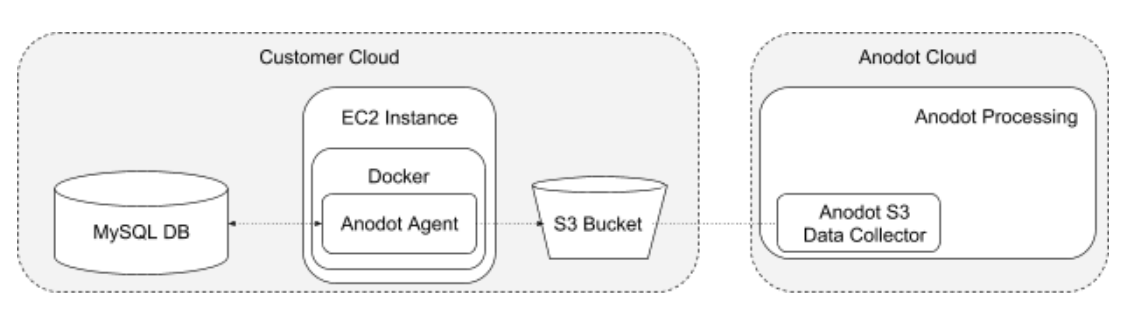

The diagram below shows the prerequisite components:

The following sections outline the steps to install and configure the Anodot Agent:

Prerequisites

  1. A relational database with your data records.
  2. An instance running docker:
       • The instance should have an IAM Role with the following policy, to be able to send data to the destination S3 bucket.
  3. A destination S3 bucket.
       • With the required policy by Anodot S3 data collector
  4. Your Anodot Account and an S3 Source linked to the S3 bucket.

Anodot Agent Installation

1. On Ubuntu Server 16.04 LTS or Redhat Enterprise Linux 7.5 EC2 instances run:

curl -o setup.sh https://bitbucket.org/anodotcommunity/anodot-agent/raw/master/scripts/setup.sh && chmod +x setup.sh && ./setup.sh

2. Otherwise, follow the manual installation process

Anodot Agent Configuration

  1. Connection to the database
  2. Destination S3 bucket
  3. Query schedule
  4. Stream id
  5. Database query
  6. Destination folder within the S3 bucket

Config File

The config file is a YAML file for readability and ease of use with text editors.

source:
  handler: anodot_agent.sources.sql
  dburl: <connection string to the db>

destination:
  handler: anodot_agent.destinations.s3csv
  bucket: <destination bucket>

scheduler:
  interval: 1d

streams:
- id: <stread_id>
  source.query: <select * from random_table_vw where ts >= '{{start_dttm}}' and ts < '{{end_dttm}}'>
  destination.folder: <folder within the S3 bucket>

 Setup Parameters

Section Parameter Description
Source   Section header holding the connection
string to the db
  handler anodot_agent.sources.sql
  dburl

Connection string to the database, holding
db type and access

postgresql://username:password@host:
port/database
mysql://username:password@host:port/
database
Destination   Section header holding the bucket
name
  handler anodot_agent.destinations.s3csv
  bucket Destination bucket name
Scheduler   Section header holding the query interval
  interval

1d - Daily
1h - Hourly
15m - Every 15 minutes
5m - Every 5 minutes
1m - Every 1 minute
Streams   Repetitive section header, enabling
multiple source queries and multiple destinations.
  id Unique name for the source+destination combination
  source.query

The query to run over the db
Use the template place holders for a
dynamic query.
See additional information in the
following table.

{{start_dttm}}' < '{{end_dttm}}
  destination.folder

Determine the the sub-folder to
store
the created files
E.g: /{my_destination_folder}

Output filename pattern will be: YYYYMMDDHH.csv

 Source.query Template Variables

Variables Expected Format
{{start_dttm}}

Timestamp at start of interval

Expected Format: YYYY-MM-DD hh:mm:ss
{{end_dttm}}

Timestamp at start of next interval {{start_dttm}}+Interval

Expected Format: YYYY-MM-DD hh:mm:ss

Anodot Agent Activation and Monitoring

Activation

When setup is complete, run the agent:

docker run -v {my-agent-data-dir}:/anodot-agent-home/ --name anodot-agent -d anodot/anodot-agent

To update agent configuration and reload it:

aatool load_config {my-YAML-config-file}.yaml

Monitoring


Anodot Agent Stream States

From the S3 Bucket to Anodot

Use Anodot S3 Data Collector.

Appendices

Appendix 1: Manual Installation Instructions

1. Activate Docker

a. On mac: docker.app

2. Open a terminal session

3. Get the latest Anodot docker release from the docker hub  docker pull anodot/anodot-agent    Appendix_1_step3.png

4. Create a directory on a persistent volume to store the agent database

    mkdir {my-agent-data-dir}
    Note: {my-agent-data-dir} should be an absolute path on the machine hosting the docker.


5. Put the YAML config file {my-YAML-config-file}.yaml in the host directory {my-agent-data-dir}
6. Run the agent

    docker run -v {my-agent-data-dir}:/anodot-agent-home/ --name anodot-agent -d
    anodot/anodot-agent
    Output: An id for the running docker


7. Enter the container


 docker exec -it anodot-agent /bin/sh
 Output: A prompt inside the docker

8. Enter the mounted directory


cd /anodot-agent-home


9. Set the configuration YAML file (see above for additional details)
10. Load the configuration yaml file

      aatool load_config {my-YAML-config-file}.yaml

Appendix 2: Instance Role Policy

{
    "Version": "2012-10-17",
    "Statement": [
       {
           "Sid": "Stmt1520872574434",
           "Effect": "Allow",
           "Action": "s3:PutObject",
           "Resource": "arn:aws:s3:::<destination bucket>/*"
       }
     ]
}
