Creating a Dashboard Chart Tile

TO CREATE A CHART TILE

  1.  Open a Dashboard.
  2.  Click Add. Select Chart from the drop-down menu. A blank tile is added to the page.
  3.  To name the tile, hover over the tile and click the Settings icon IconSet.ico.
  4.  Select Settings.

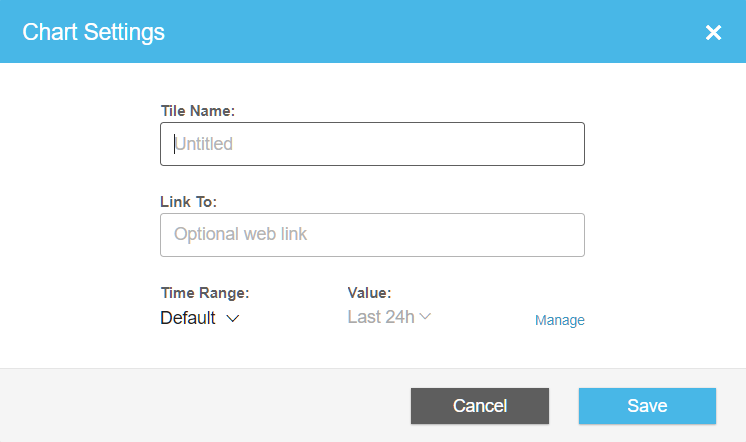

     In the Chart Settings dialog box:
     - Enter a Chart name
     - [optional] Enter a web link. Converts the Chart name to a hyperlink to the specified link.
     - Click Save
    Note: To set a custom time range see Setting a Custom Time Range per Chart or Meter Tile.
  5. - To add metrics to the chart, click SettingsIcon.png > Settings. The metric expressions definition panel opens. See Building Metric Expressions.
    Note: The results of the parameters selected are immediately displayed in the chart.
  6.  Click Save, the chart is automatically saved to the Dashboard.

 CHANGING THE DASHBOARD TILE DISPLAY

Legend


 To show/hide the metrics legend, click LegendIcon.ico. The legend is interactive.

 The options are:

  •  Show All / Hide All: Use the ShowAllMetrics.ico and HideMetricsIcon.ico icons to show or hide all metrics
  •  To show/hide specific metrics, select the metric in the legend
  •  Indicates that there is no data WarningIcon.ico
  •  Table / Wrapped view: Use theTableViewIcon.ico /ListViewIcon.ico icons to toggle between table and wrapped view of the metrics in the legend
  •  To resize the chart to display more or less of the metrics, slide the legend slider up or downlegend_resize_slider.png.

Time scale [Optional]

 To define a different time scale for the tile metrics than the system-calculated Auto scale, select a time scale in the AutoDownChevronIcon.ico drop-down menu.

 Time scale is the minimum time interval between two data samples:

      • - Auto - Anodot automatically chooses time scale based on requested Time Range
      • - 1 Minute intervals
      • - 5 Minutes intervals
      • - 1 Hour intervals
      • - 1 Day intervals

 Changes to the Dashboard are automatically saved.

General:

  •  To change the chart display settings, see Customizing a Chart.
  •  To move a tile, hover over theHover2MoveIcon.ico move icon to display a crossMoveIcon.ico  - drag the tile to a new location.
  •  To re-size a tile, hover over the lower right corner to display a grey triangleResize_icon.ico, drag it to re-size the tile.

 TO DUPLICATE A TILE

ClickSettingsIcon.png> Duplicate.
Note: When a tile with an alert is duplicated, the alert is not duplicated.

 TO EXPORT METRICS AND DATA

 ClickSettingsIcon.png> Export to CSV.
Note: The csv fields are: Local time, Metric1 value, Metric2 value...MetricN value [N = the number of metrics displayed in the chart].

 TO DELETE A TILE

 ClickSettingsIcon.png> Delete
A  warning dialog box is displayed:

Click Delete if you are sure you want to delete.

Note: When a tile or a Dashboard containing tiles with alerts is deleted, the alert(s) are detached, not deleted. Alerts are retained in Anodot and will be triggered if and when they affect other metrics.
