Anomaps

Anomaps focus on isolating the what [dimension] metric properties and values of anomalies. Anomaps are ranked by relevancy. By default the five most relevant dimension properties, and their weight based on the selected sort type [Start Date/ Significance/ Absolute Delta] are displayed on each of the Anomaps. See Anomaly Filters Anomaly and Anomap Filters > Sort.

To change the property dimensions displayed on an Anomap, see Changing Dimension Properties displayed in Anomaps.


The relevance assessment is displayed using a color code and size scale.


  High


   Relevant


   Low


    Marginal

Note:

To further refine the Anomap, click any property value. It is added to the filter and is automatically applied to all displayed charts and Anomaps.

Click

To


Expand icon to view a single Anomap


Contract icon to restore to the default view



To reset the default Anomap dimension properties


Left/Right carousel arrows to view more maps.
The Anomaps carousel can hold up to ten maps.


Collapse the maps and view only the what metrics
without their properties and values.
Click again, to restore the default view.
 metricName.png Hover over a metric to display
the complete name.
Properties_and_values.png Display its properties and values.

Note To view Anomaps based on different time ranges, time scales, metrics,
significance,  duration and weights, see Anomaly and Anomap Filters.

CHANGING DIMENSION PROPERTIES IN ANOMAPS

Anomaps ranks and displays dimensions by relevance - the dominant, customer-defined dimensions are by default displayed on the Anomaps. To display dimensions with a lower relevance, remove a displayed dimension.When you remove a dimension:
a/ the next dimension, in order of relevance is displayed
b/ all the value calculations on which the Anomap is based are are updated accordingly.

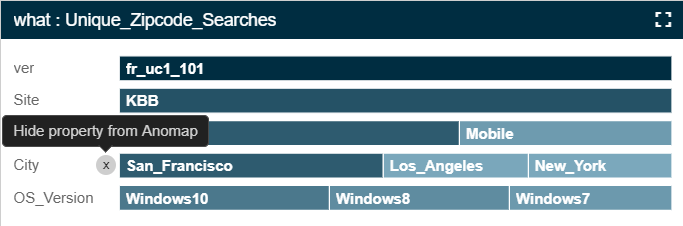

To remove a dimension property:

  1. Hover over the dimension property name.
  2. Click the X button.
    Note: The dimension is removed from all the Anomaps in the Anoboard tile. The dimension is not deleted. It is filtered out from the display. To reset the default Anomap dimension properties, click RESET ANOMAP.
